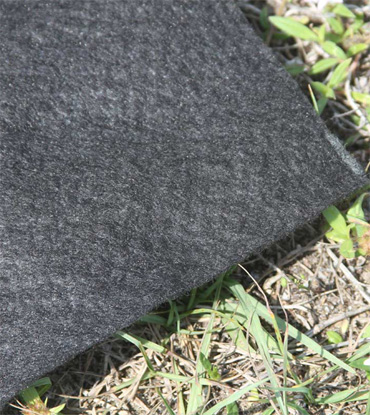

Nonwoven Geotextile Fabric

Nonwoven Geotextile Fabric Features

• Nonwoven Needle Punched Polypropylene
• Water Flow Rate: 150 gpm/ft²
• Weight: 3.1 oz/yd²
• Tensile Strength: 80lbs

Nonwoven Geotextile Fabric Benefits

• Highest Level of Permeability
• UV & Rot Resistant
• Light Weight Fabric
• Chemically Inert (from 2-13 pH)

3.1 oz Nonwoven Geotextile Fabric Grab Tensile Strength

3.1 oz nonwoven geotextiles feature an 80 pound grab tensile strength and approximate apparent opening size (AOS) of #50 US sieve. This allows for high a level of water to pass through the fabric when used in drainage or filtration areas. Non woven geotextile drainage fabrics are made from a blend of materials designed for high resistance to many of the challenges they will face during outdoor use.

• 100% Polypropylene Staple Fibers
• Random Network Formation
• Rot Resistant
• Stable with 2-14 pH
• Needle-Punched
• UV Resistant
• Biological Degradation Resistant

The 3.1 oz. nonwoven geotextile is a lightweight fabric used in filtration, drainage, paving, and other landscaping applications. Whether wrapped around a drain pipe or used to support a paver, these geotextiles can provide a combination of both strength and filtration. Common applications for 3.1 oz non woven geotextiles include:

• French Drains
• Asphalt Overlay
• Subsurface Drains
• Support Under Pavers or Road

Other uses for non woven geotextile fabric include:

• Erosion Control
• Drainage Pipe Wrapping
• Drainage Projects
• Separation
• Construction Site Drainage

For additional nonwoven geotextile fabrics for sale by size and filtration properties see: Nonwoven Geotextile Fabrics

Property	Test Method	Unit	Minimum Average Roll Value (M.A.R.V.)
Grab Tensile	ASTM D4632	lbs (kN)	80 (.35)
Grab Elongation	ASTM D4632	%	50
Trapezoid Tear Strength	ASTM D4533	lbs (kN)	30 (.13)
CBR Puncture Resistance	ASTM D6241	lbs (kN)	175 (.76)
Permittivity	ASTM D4491	sec-1	2.2
Water Flow	ASTM D4491	gpm/ft² (l/min/m²)	150 (6095)
A.O.S	ASTM D4751	U.S. Sieve(mm)	50 (.30)
UV Resistance	ASTM D4355	%/hrs	70/500
CBR Puncture Strength	ASTM D4355	lbs (kN)	175 lbs (.76 kN)
Rolls Sizes	12.5' W x 360' L (4,500 ft²) 15' W x 360' L (5,400 ft²)
