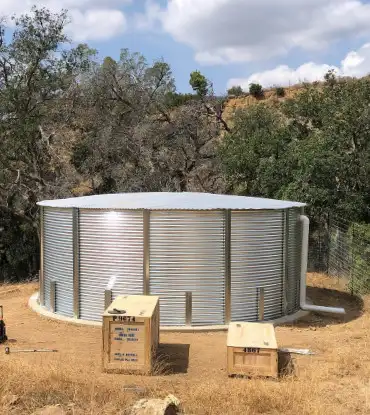

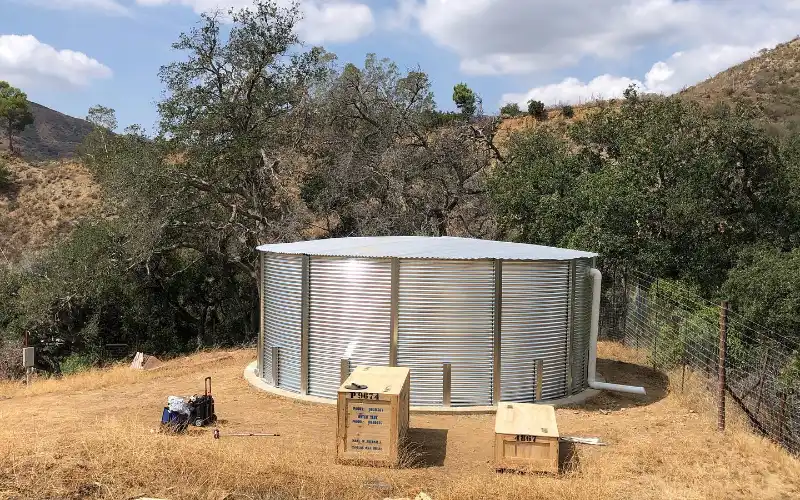

Corrugated Steel Tanks

Extended Life Expectancy

Our corrugated water tanks are tough, corrosion resistant tanks with an average life span of 30-35 years. In fact, we believe in our tanks so much we offer up to a 20-year warranty for manufacturing defects. You save money when you buy our corrugated water tank, and it’s half the cost to replace when it reaches its lifespan compared to epoxy coated tanks.

Durable Tank Liners

Our tank liners surpass industry standards. All of our liners are NSF 61 potable water approved and NFPA 22 equivalent. We have 6 different standard liners available, including coating and flexible liners, as well as specialty and custom liners for your corrugated steel tank.

Additional Insulation

Between the steel wall and flexible liner, interior poly-iso insulation is used for insulation. Steel flanges are installed to fit the insulation. Immersion heaters are also an options per NFPA22.

Optional Flooring Designs

Most of our corrugated steel tanks are built on concrete foundations, making a steel floor unnecessary. But for tanks with steel floors engineered to be self-anchored, we have anchors that meet ASCE7-10 and all AWWA requirements. We use tall anchor saddles and A36 F155r zinc or galvanized all-thread anchor rods. Standard non-seismic anchors, heavy-duty seismic anchors, stiffener pages, as well as other options are available.

See Corrugated Tank Details & Specs Here:

• Corrugated Water Tank Flyer
• Tank Size Calculator
• Corrugated Steel Tank Drawings and Specs
• Sample Corrugated Tank Engineering Packet

Corrugated Tank Applications

Rainwater Collection – In some cities, rainwater collection tanks provide a way to supplement local water supplies, whether filtered for drinking or used for irrigation. With your tank’s specific calculations for capacities and diameters, corrugated water storage can be placed in large or small areas throughout the city to maximize rainwater collection.







Stormwater Storage – A continual concern for municipalities, Stormwater Runoff carries silt, sediment, and other contaminants. Many towns have a public water system in place to catch polluted water before it enters protected areas, but the capacity is not always adequate. Use steel storage tanks to hold stormwater for processing and purification, preventing overwhelmed sewer systems and treatment plants.





Fire Suppression – For efficient fire suppression, firefighters need a steady water supply when doing their jobs. If a fire is particularly difficult, Emergency Management may rely too heavily on the local water system. By strategically locating NFPA-approved bolted steel tanks, it can reduced the strain on the local water supply.







Potable Water Supply – Most cities and towns have water systems that supply residents with potable drinking water. Corrugated water tanks are a great solution for water storage throughout the city. This is particularly helpful during an emergency, giving the community a reliable water source from Water Management.

Other tank applications include:

• Petroleum Products
• Chemical Storage
• Potable and Non-water storage
• Irrigation
• Bulk materials and dry goods

Need assistance with your corrugated steel tank project? We can help! Give us a call at 1-863-261-8388 for more information or Request a Quote.

Your corrugated water tank panels are fabricated, then delivered to your location for onsite installation. Before we can make your tank panels, the type and size of your tank has to be determined. Our tank calculator will help you define the usable gallon requirements for your tank. HGD sheets range in gauge depending on the engineering calculation for your specific tank. We also need to work with you to find out your project coordinates and tank use/application before manufacturing your tank.

Interested in buildig your own DIY Water Tank? Visit our page AquaDot 5,000 gallon corrugated water tank kit.

Line drawings are used as a tool to incorporate corrugated steel tank aerial view, side view with elevation specifications, and detailed dimensions of each element of your tank from top to bottom, including any custom features. Line drawings inform the development process with specific information for engineering, construction and tank completion. Line drawings can include any appurtenance for job-specific safety requirements.

See: Individual Tank Line Drawings

Corrugated Steel Tanks are installed on site from bottom up on concrete foundations, unless otherwise specified, and are seismically anchored to the foundation as needed. Sidewall designs are based on AISI for bolted joint connections and requirements of AWWA chapter 5. Your roof is also included in site installation. Any safety or optional appurtenances are also assembled on site. These may include guardrails, deck access, ladder systems, catwalks, bridges and more. Find out more about our tank installation.

See our bulk storage tanks page for information on our other water storage options.

Our Custom Tank Blanket Heaters are exactly what you need for tank freeze protection. When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!
