Collapsible tanks offer an alternative to rigid steel or fiberglass tanks. Made from flexible materials such as PVC or Elvaloy, our collapsible water tanks are often used for temporary potable or non potable water storage. However, most can also be used for a variety of other liquids such as fuel.
In addition to the tanks themselves, Clarion Municipal also provides many necessary accessories:
Have a question about our collapsible tanks? Contact Us for pricing and options or call us at 863-261-8388.

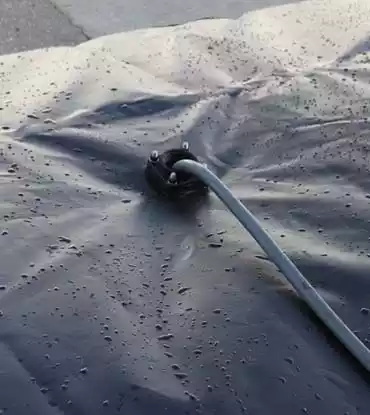

Available in a wide range of sizes, flexible pillow tanks are collapsible bladders for water, certain types of fuel, and oil. The fabric used for construction depends upon the intended application. All our collapsible water tanks are strong and reliable, created with state-of-the-art vulcanizing and heat welding techniques. The low profile design allows pillow tanks to fit areas that won't work for traditional rigid bulk tanks. To find out to best install the low-profile pillow tanks, see our Pillow Tank Installation Instructions.
Pillow tanks are versatile and able to accommodate many different applications. Some cities and counties will often use them to hold collected rainwater for municipal services, such as landscape watering, public consumption, or fire suppression. Having a ready supply allows the local government to save time and money without straining the city's water system.
For more information on flexible water storage tanks, see our Potable Pillow Water Tank Specifications.
| Capacity (Gallons) | Dimensions (W x L x H) |
|---|---|
| 25 | 24" x 36" x 8" |
| 50 | 36" x 52" x 9" |
| 75 | 42" x 54" x 9" |
| 100 | 48" x 66" x 9" |
| 150 | 60" x 60" x 12" |
| 250 | 84" x 60" x 14" |
| 275 | 72" x 80" x 16" |
| 300 | 84" x 66" x 14" |
| 500 | 84" x 108" x 16" |
| 600 | 120" x 84" x 16" |
| 700 | 114" x 99" x 16" |
| 800 | 72" x 120" x 24" |
| 900 | 72" x 132" x 24" |
| 1,000 | 108" x 132" x 16" |
| 1,500 | 120" x 168" x 18" |
| 2,000 | 126" x 174" x 22" |
| 2,500 | 144" x 174" x 24" |
| 3,000 | 162" x 180" x 24" |
| 4,000 | 168" x 216" x 27" |
| 5,000 | 186" x 234" x 27" |
| 5,500 | 20' x 17' x 2.25' |
| 6,000 | 21' x 18' x 2.25' |
| 6,500 | 20.8' x 18' x 2.5' |
| 7,000 | 19' x 20' x 2.5' |
| 7,500 | 20' x 20' x 2.5' |
| 8,000 | 19' x 19' x 3' |
| 9,000 | 21' x 20' x 3' |
| 9,500 | 21' x 21' x 3' |
| 10,000 | 23' x 21' x 3' |
| 20,000 | 25' x 33' x 3.5' |
| 30,000 | 32' x 36' x 3.5' |
| 40,000 | 40' x 37' x 4' |
| 50,000 | 42' x 43' x 4' |
| 70,000 | 48' x 42' x 4' |
| 80,000 | 77' x 30' x 5.5' |
| 106,000 | 88' x 35' x 5.5' |
| 125,000 | 58' x 59' x 5' |
| 150,000 | 78' x 58' x 6' |
| 210,000 | 75' x 73' x 6' |
Clarion Municipal offers open top onion tanks for the temporary storage of water or other liquids. All tanks feature self-rising walls for quick setup and easy access fittings for draining. Depending on the application, onion tanks are constructed of either heavy-duty PVC or potable-safe Elvaloy. Both low and high walls are available to fit different spaces. Onion tank accessories include covers and ground cloths.
While onion tanks are invaluable for emergency water storage, they have also been used as decontamination or mixing tanks. Parks and Recreation department employees use them to temporarily hold water from fountains or small pools in public areas during repair or cleaning.
Check out this Onion Tank spec chart here
| Capacity (Gallons) | Base Diameter | Filled Height |
|---|---|---|
| 250 | 5'10" | 28" |
| 500 | 7' | 32" |
| 750 | 8'4" | 33" |
| 1,000 | 9'5" | 33" |
| 1,500 | 11'9" | 32" |
| 2,000 | 13' | 32" |
| 2,500 | 14'3" | 32" |
| 3,000 | 15'3" | 34" |
| 5,000 | 18'2" | 33" |
| 6,000 | 21'6" | 33" |
| 10,000 | 26'9" | 33" |
| Capacity (Gallons) | Base Diameter | Filled Height |
|---|---|---|
| 500 | 5' | 36" |
| 1,000 | 8' | 44" |
| 1,600 | 9' | 44" |
| 1,800 | 9' | 46" |
| 2,000 | 11'9" | 48" |
| 2,500 | 12'8" | 48" |
| 3,000 | 14'2" | 48" |
| 5,000 | 16'2" | 60" |
| 6,000 | 16'2" | 65" |
| 8,000 | 19'5" | 65" |
| 10,000 | 19' | 80" |
Frame tanks combine rigidity and flexibility in one portable temporary water storage unit. The hinged outer frame, available in either aluminum or steel, creates a solid, fixed shape strong enough to support many gallons of water. Attached to the frame using sturdy rope, the interior liner easily contains most liquids. Liners can be constructed in a variety of fabrics, including NSF 61 and FDA approved materials suitable for potable water. When not in use, the frame tanks quickly fold flat for storage and transportation.
Frame tanks are often used by Emergency Management services. Firefighters need collapsible tanks to temporarily store water necessary for extinguishing fires. During power and water outages after natural disasters, first responders can use folding firefighter water tanks to hold large amounts of potable water for community distribution.
| Capacity (Gallons) | Full Size | Folded Size | Double Folded Size (Optional) |
|---|---|---|---|
| 500 | 5'8" x 5'8" x 29" | 7" x 5'8" x 29" | 16" x 2'11" x 29" |
| 750 | 7' x 7' x 29" | 7" x 7' x 29" | 16" x 3'7" x 29" |
| 1,000 | 8'3" x 8'3" x 29" | 7" x 8'3" x 29" | 16" x 4'3" x 29" |
| 1,500 | 10'3" x 10'3" x 29" | 7" x 10'3" x 29" | 16" x 5'3" x 29" |
| 2,100 | 11'3" x 11'3" x 29" | 7" x 11'3" x 29" | 16" x 5'9" x 29" |
| 2,500 | 12'3" x 12'3" x 29" | 7" x 12'3" x 29" | 16" x 6'3" x 29" |
| 3,000 | 13'3" x 13'3" x 29" | 7" x 13'3" x 29" | 16" x 6'9" x 29" |
| 3,500 | 14'3" x 14'3" x 29" | 7" x 14'3" x 29" | 16" x 7'3" x 29" |
| 4,000 | 15'3" x 15'3" x 29" | 7" x 15'3" x 29" | 16" x 7'9" x 29" |
| 5,000 | 17'3" x 17'3" x 29" | 7" x 17'3" x 29" | 16" x 8'9" x 29" |
We also carry other types of liquid storage options like bulk storage tanks and water trailers.
Need a price or have a question about our collapsible tanks? Contact Us for pricing and collapsible tank options.
