Mirafi® Geotextile

non woven geotextile fabric

Mirafi® Geotextile

Mirafi® S Filter Fabric

Mirafi® S filter fabric plays a significant role in the collection of liquids in waste containment systems. This nonwoven geotextile is used in critical subsurface drainage systems, permanent erosion control, soil separation, and other geomembranes in landfill construction. Similar to the Mirafi® N-Series, the S-Series differs in material weight and thickness. The S-Series is available in 6 oz. to 16 oz. weights, and deliver excellent strength and abrasion resistance, as well as withstanding installation and application stresses. Mirafi® filter fabric provides exceptional durability, along with high puncture resistance, permittivity, and transmissivity. Let us help you find the nonwoven geotextile fabric that’s perfect for your particular application; call to talk with one of our knowledgeable team members.

Our friendly staff is here to help you get the exact product you need!


Call us now! 1-863-261-8388
or Contact us for additional information.

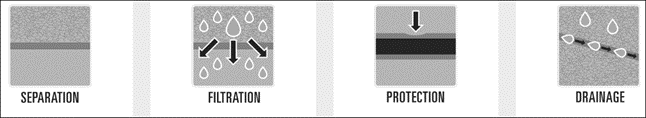

Mirafi® Filter Fabrics Functions

Infographic showing off the functions of the Mirafi filter fabric

Mirafi® Filter Fabrics


Mirafi® S-Series nonwoven geotextiles are used in a wide variety of ways in the environmental market, including separation, filtration, or protection applications. The polypropylene, nonwoven fabric prevents clogging of collection pipes and drainage collections, making it ideal for Environmental, Natural Resources and Energy Infrastructure projects. These nonwovens are constructed to easily conform to ground or trench surfaces, ensuring problem free installation. The high flow through and soil retention rate makes the S series the perfect choice for civil engineering applications. Mirafi® geotextiles eliminate the difficulty of determining the aggregate gradation required to match soil conditions, assuring your constructed in-place drainage system will provide effective filter performance.


Mirafi® Filter Fabric Features


  • Polypropylene Nonwoven Geotextile Fabric
  • Available in 6 oz. to 16 oz. weights
  • Heavyweight, Durable Construction and Design
  • Resistant to Tears and Punctures
  • Withstand Installation Stresses
  • Strength and Abrasion Resistant

Mirafi® Filter Fabric Benefits


  • Conforms to Ground or Trench Surface
  • Soil Separation, Filtration and Drainage Applications
  • UV Resistant
  • Effective Filter Performance
  • Chemically Stable in Aggressive Environment
  • Economical Alternative to Graded Aggregate Filters

For projects requiring higher strength non woven geotextile fabrics, we have a wide selection of options that feature increased weight, higher grab tensile strength, and more rigid fabric structures. For more choices regarding these geotextiles, see Non Woven Geotextile Fabric Options.


Mirafi® Filter Fabric Specifications


MECHANICAL PROPERTIES TEST METHOD UNIT S600 S800 S1000 S1200 S1600
Weight ASTM D5261 oz/yd2 (g/m2 ) 6 (203) 8 (271) 10 (339) 12 (407) 16 (542)
Thickness ASTM D5199 mils (mm) 80 (2.0) 90 (2.3) 115 (2.9) 130 (3.3) 175 (4.4)
Grab Tensile Strength ASTM D4632 lbs (N) 170 (757) 230 (1024) 270 (1202) 320 (1424) 425 (1891)
Grab Tensile Elongation ASTM D4632 % 50 50 50 50 50
Trapezoid Tear Strength lbs (N) % 70 (312) 95 (423) 105 (467) 125 (556) 155 (690)
CBR Puncture Strength ASTM D6241 lbs (N) 450 (2003) 600 (2670) 725 (3226) 900 (4005) 1200 (5340)
UV Resistance after 500 hrs. ASTM D4355 % strength 80 80 80 80 80

Mirafi® Filter Fabric Applications


Mirafi® filter fabric is primarily used for protection in Environmental, Natural Resources and Energy Infrastructure projects. This includes liner protection in solid waste landfills, fracking ponds, and other water management systems. These heavyweight, nonwoven fabrics are effective in critical subsurface drainage systems, permanent erosion control, soil separation, and geo-membrane liner protection in landfills. Mirafi® filter fabrics also assist in maintaining an opening for gases to escape from below liner systems. Other uses for nonwoven fabrics in landfill applications are:  leachate collection/removal systems and gas collection and venting systems. Call one of our specialist today for help with your nonwoven fabric specifications and applications.


For more information on other Mirafi nonwoven geotextile solutions see: Mirafi Nonwoven Geotextile Fabrics or check our Mirafi Non-Woven Getoxtiles (pdf).


Need more information on our other biodegradable erosion control solutions? See our Erosion Control Line Card
