Geotextile Drainage Fabric 10 oz.

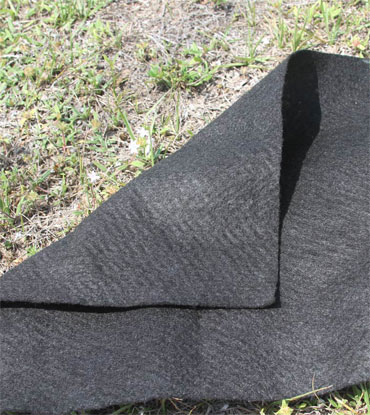

Geotextile drainage fabric

10 oz. Non Woven Geotextile Fabric

Heavy Weight Non Woven Geotextile

The geotextile drainage fabric 10 oz. non woven is the first of the heavy weights, the strongest and sturdiest of all the nonwoven geotextiles. Heavy weight geotextile drainage fabrics boast superior strength with a grab tensile rating of 250 lbs. but also are very durable and among the most resistant to tear damage. While the strength of the 10 oz. geotextile drainage fabric is on par with that of woven geotextiles, it has the added benefit of being able to provide filtration while being a more pliable and forgiving fabric. Lightweight and medium weight versions of non woven geotextile drainage fabrics are also available for less rigorous site conditions.

Our friendly staff is here to help you get the exact product you need!


Call us now! 1-863-261-8388
or Contact us for additional information.


10 oz. Geotextile Drainage Fabric Features and Benefits


10 oz. Geotextile Drainage Fabric Features


  • Fabric: Needle Punched Polypropylene
  • Grab Tensile Strength: 250 lbs
  • Roll Sizes: 12.5' x 360' and 15' x 300'
  • Roll Weight: 130-155 lbs
  • Water Flow Rate: 80 gpm/ft²
  • 50% Elongation

10 oz. Geotextile Drainage Fabric Benefits


  • Cost-Effective
  • Natural Resistance to UV Exposure
  • Equipped to Handle Contact with Chemicals
  • High Level of Filtration
  • Equal in Strength to Woven Fabrics
  • Rot Resistant

10 oz. Non Woven Geotextile Drainage Fabric Details

Unlike the woven geotextiles, nonwovens use a needle punched process to form the synthetic fabric. This is what provides the felt-like texture, along with geotextile drainage fabric's superior filtration properties. It also is what makes the fabric pliable so that it can stretch and fit the application's needs better. While both fabric types can handle similar applications, like slope stabilization, 10 oz. non woven geotextile drainage fabric will also be able to filter the sediment before it comes through. Additionally, nonwoven geotextile has the ability to wrap to the contours of a slope more closely.


With a high flow rate and superior strength, 10 oz non woven geotextile fabric can handle demanding slopes or terrain with ease. Its thickness makes it ideal for applications where cushioning is needed also. However, if your project doesn't need to accommodate such extreme conditions, a lighter weight option than the 10 oz. geotextile fabric will be easier on your budget. See our full line of Non Woven Geotextile Drainage Fabrics.

If strength is more important to your project than filtration, Woven Geotextile Filter Fabric may be what your project needs. Give us a call at 1-863-261-8388 for more information or Contact Us through our web form.


10 oz. Non Woven Geotextile Drainage Fabric Applications

Designed with steep slopes and harsh conditions in mind, 10 oz. Geotextile Drainage Fabric is strong, durable, and has good drainage and filtration rates. As a heavy weight fabric, 10 oz. non woven geotextile fabric's thick felt-like consistency makes it perfect for cushioning projects as well.


Consider 10 oz. geotextile fabric for:

  • Aggregate Separation
  • Slope or Embankment Stabilization
  • Soil Reinforcement
  • Erosion Control
  • Shoreline Stabilization
  • Drainage Projects
  • Railroad Ballast
  • Underlayment

If your project has rigorous site conditions and needs a stronger fabric, nonwoven geotextile drainage fabrics are available with tensile strengths of up to 380 lbs. Please see: Nonwoven Geotextiles or else call us at 1-863-261-8388 for assistance.


10 oz. Non Woven Geotextile Drainage Fabric Specifications

Property Test Method Unit Minimum Average Roll Value (M.A.R.V.)
Weight ASTM D5261 oz/yd² (g/m²) 10 (339)
Grab Tensile ASTM D4632 lbs (kN) 250 (1.11)
Grab Elongation ASTM D4632 % 50
Trapezoid Tear Strength ASTM D4533 lbs (kN) 40 (.178)
Puncture Resistance ASTM D4833 lbs (kN) 535 (2.37)
Permittivity ASTM D4491 sec-1 1.2
Water Flow ASTM D4491 gpm/ft² (l/min/m²) 80 (3251)
A.O.S ASTM D4751 U.S. Sieve (mm) 100 (.150)
UV Resistance ASTM D4355 %/hrs 70/500

For non woven geotextile installation accessories, please call us at 1-863-261-8388!


Non Woven Geotextile Fabric Flyer Non Woven Geotextile Fabrics
Roll Sizes 12.5' W x 360' L (4,500 ft²)
15' W x 360' L (5,400 ft²)

Mirafi® S-Series

We also offer the Mirafi® S-Series heavy-duty filter fabric for protection in environmental, energy infrastructure and natural resource projects. This geotextile is perfect as liner protection in solid waste landfills, fracking ponds, and other water management systems. Mirafi® S-Series nonwovens deliver exceptional durability with high puncture resistance, transmissivity and permittivity. This strong filtration fabric is available in 6 oz to 28 oz with a variety of thickness. The S-Series material weight and thickness is included in the certified properties of the product. The S-Series provides an economical solution for many civil engineering applications, providing a cost-effective alternative to graded-aggregate filters. Visit our Mirafi® S-Series page to learn more.


For more information about our entire Mirafi® nonwoven geotextiles, visit our Mirafi overview page.


Please contact with one of our knowledgeable team to select the Nonwoven geotextile filter fabric to meet your project's specifications. Give us a call at 1-863-261-8388 for more information or Contact Us.
