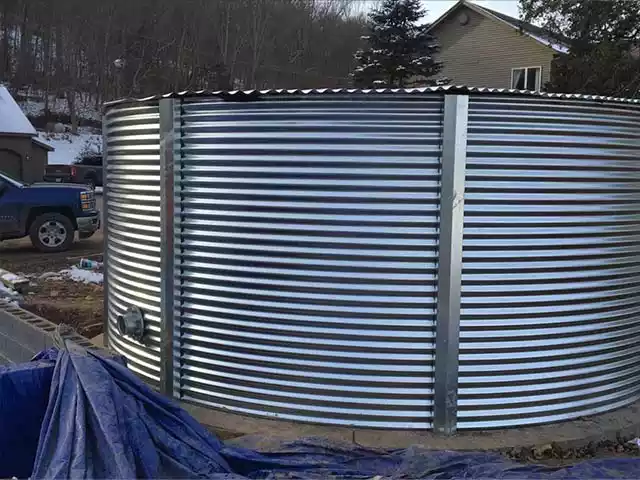

5000 gallon Water Tanks

Bolted steel tanks

5000 gallon Water Tanks

Save up to 50%

5000 gallon Water Tanks, along with 8 other sizes up to 102,000 gallons and custom sizes too. AquaDot corrugated water tanks will save you up to 50% over competitors prices, using only quality materials.  Sadly, competitors often cut costs by offering lower grades of metal, thinner coatings, less robust water storage tank fittings.


Our AquaDot tanks are different, however, because they are specifically designed to save money while providing long lasting water storage.  Our steel water tanks use only heavy-duty galvanized steel panels, with the thickest protective coating available.  We include a flexible food-grade potable water approved poly liner that is not prone to cracking, unlike many other liners in the market. Made to last, we offer a 20 year “no leaks” warranty.


Put 30+ years of making quality corrugated water tanks to work for you!

Our friendly staff is here to help you get the exact product you need!


Call us now! 1-863-261-8388
or Contact us for additional information.

AquaDot Water Tank Sizes:

Available in 5000 gallon water tanks, 12,000 gallon water tanks, 50000 gallon water tanks and other sizes too! Find the size you need below. Custom sizes are available too!

Gross Volume Tank Diameter Cistern Height Details
5,000 gal 10'7" 7'3" Specs Drawing
12,000 gal 17'1" 7'3" Specs Drawing
16,000 gal 17'1" 9'6" Specs Drawing
28,000 gal 25'7" 7'3" Specs Drawing
37,000 gal 25'7" 9'6" Specs Drawing
50,000 gal 34'2" 7'3" Specs Drawing
65,000 gal 34'2" 9'6" Specs Drawing
77,000 gal 42'8" 7'3" Specs Drawing
102,000 gal 42'8" 9'6" Specs Drawing

Roof Sheet Layout

Type Coverage Tank Diamater Details
5000 galllon Full Length 32" 130" Drawing
205" Diamater Full Length 32" 205" Drawing
307" Diamater Full Length 32" 307" Drawing
409" Diamater Full Length 32" 409" Drawing
409" Diamater Short Length 32" 409" Drawing
512" Diamater Full Length 32" 512" Drawing
512" Diamater Short Length 32" 512" Drawing

AquaDot Water Tank features

  • • G145 Galvanized Coated Corrugated Steel Walls
  • • NSF/ANSI 61 Certified for Potable Water Use Tank Liner/Food Grade
  • • Hot Dip Galvanized Roof Structure & Corrugated Dome Roof
  • • 2” Outlet with Nickel Coated Metal Ball Valve
  • • 2” Drain with Nickel Coated Metal Ball Valve
  • • 6” Overflow with Mosquito Screen and Flap Valve
  • • Inlet Basket with UV Guard
  • • Geomat Cushion Layer Tank Liner Protection
  • • Tank Wall Moisture Barrier
  • • Foam Roof Seal for Dust and Vermin Protection
  • • Lockable Access Hatch with Removable Ladder
  • • Available in sizes: 5000 gal, 12000 gal, 16000 gal, 28000 gal, 37000 gal, 50000 gal, 65000 gal, 77000 gal and 102000 gallon sizes. Custom sizes are also available.
  • • Meets code requirements (see below)

Optional:

  • • Rainsaver Gutter System
  • • Decorative Roof Facia
  • • A complete range of additional and over-size fittings

AquaDot Water Tanks Benefits

  • • Poly lined steel water tank is durable, strong, reliable, and safe
  • • The most efficient and affordable large volume water tank available on the market
  • • 20 year “Leak Free” Pro-Rata Warranty leads the industry and is supported by over 30 years of experience in choosing the right materials to survive the toughest of conditions
  • • Fitted geotextile tank liner underlay provides the ultimate protection against liner damage for the life of the tank
  • • Moisture barrier adds protection beneath the tank and also prevents base erosion
  • • Hinged lockable roof provides secure access, and access hatch
  • • Inlet includes a light guard to prevent sunlight from entering the tank, preventing algae growth
  • • Trained and qualified staff is available, if needed to help with installation

AquaDot Corrugated Steel Water Tank pdfs


Why Choose AquaDot Water Tanks?

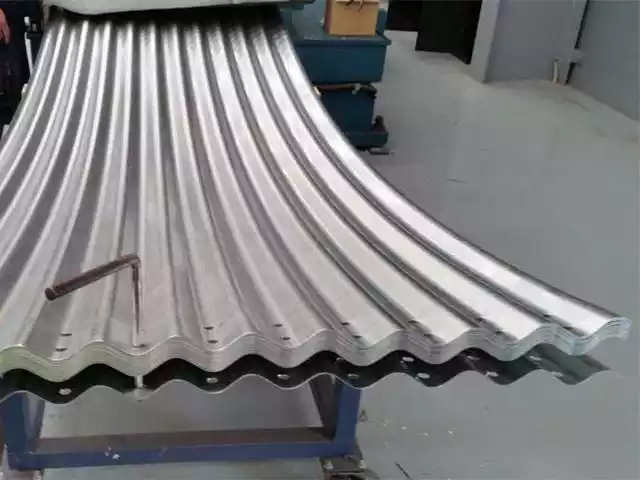

Water Storage Tank Panels
AquaDot water tank panels are treated with the thickest galvanized coating on the market,1.45 oz/sf (G145). Our steel water tanks are strong, and resist water, wind and seismic loads without incurring excess material costs.

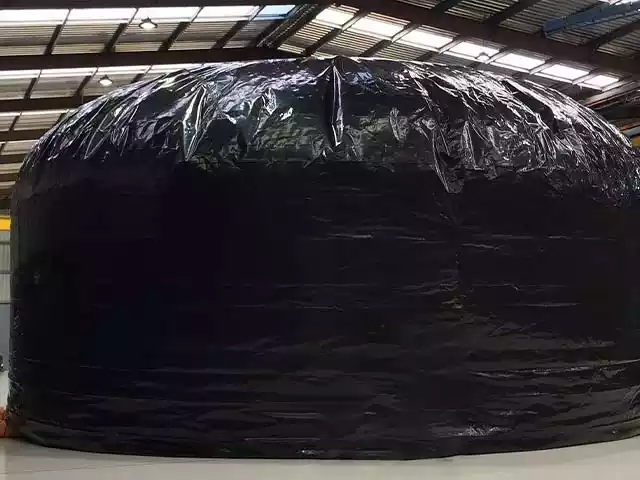

Water Storage Tank Liner
AquaDot water tanks provide safe and proven drinking water storage. We use a BPA-free food grade tank liner certified to meet NSF potable water requirements. Also, our liner lasts longer and offers greater protection than others used by the competition. Often as a cost saving measure, competitors use a coated mesh liner. However, we use a “monofilament” liner, because it resists fatigue cracking and is very stretchy… all are important characteristics for safe and long lasting water storage.


AquaDot Tank Warranty
Enjoy peace of mind and long lasting safe water storage with AquaDot tanks. Our AquaDot tanks come with an unmatched 20 year “No-Leaks” warranty. Our warranty leads the industry and is supported by over 30 years of experience. We use only the best materials to ensure that your tank survives the toughest conditions with ease.

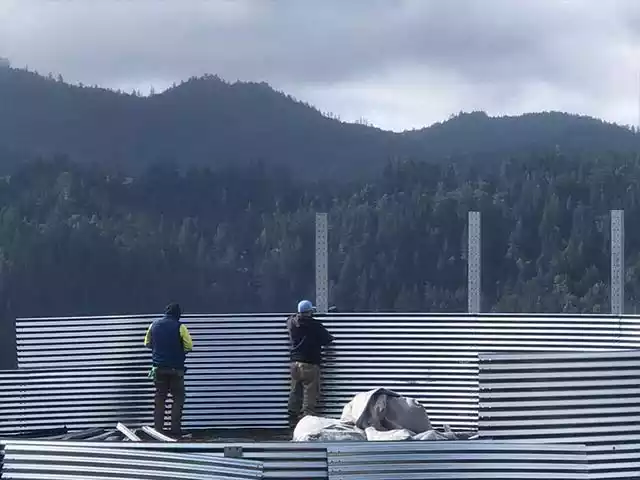

Corrugated Tank Installation
Only the AquaDot 5,000 gallon corrugated water tank is available as a DIY kit. You can also choose to have it professionally installed. For the other tank sizes, you can manage the installation, or you can have our team of trained technicians handle the installation.
See: Sample Installation Instructions.




AquaDot Tank Code Requirements

AquaDot water tanks are designed to meet or exceed the following standard loading, concrete and steel structure codes:


  • • ASCE7-10 Minimum Design Loads For Buildings and Other Structures
  • • ACI318-14 Building Code Requirements for Structural Concrete
  • • AISC 360-10 Specification for Structural Steel Buildings
  • • AISIS100-07 North American Specification for the Design of
    Cold-Formed Steel Structural Members
  • • AWS D1.1 Structural Welding-Steel
  • • NSF/ANSI 61: Drinking Water System Components

Have questions about bolted storage tanks? Give us a call for more information at 1-863-261-8388 or Request a Quote through our webform.


Corrugated Water Tanks Applications

AquaDot Corrugated Water Tanks set the standard in cost efficient large volume water tanks. They are designed and manufactured for long-lasting quality. They can be transported inexpensively anywhere in the world and assembled in a day in most cases by trained installers.

Appropriate for municipal, agricultural and industrial projects, AquaDot corrugated water tanks are used for a variety of projects with a wide range of applications:

  • • Rainwater Collection
  • • Fire Water Storage
  • • Irrigation Water Storage
  • • Agriculture
  • • Drinking Water Storage
  • • Process Water Storage
  • • Bulk materials and dry goods
  • • Frac Storage Tanks

See: DIY 5,000 gallon water tank Kit!


Have questions about AquaDot Corrugated Water Tanks? We're here to help! Call us Today!

We can help! Call our knowledgeable team at 1-863-261-8388 to discuss your requirements.
